Blaze Turbine / Custom Manufacturing
Blaze Turbine manufactures metal honeycomb components to application-specific drawings and specifications.
Product overview

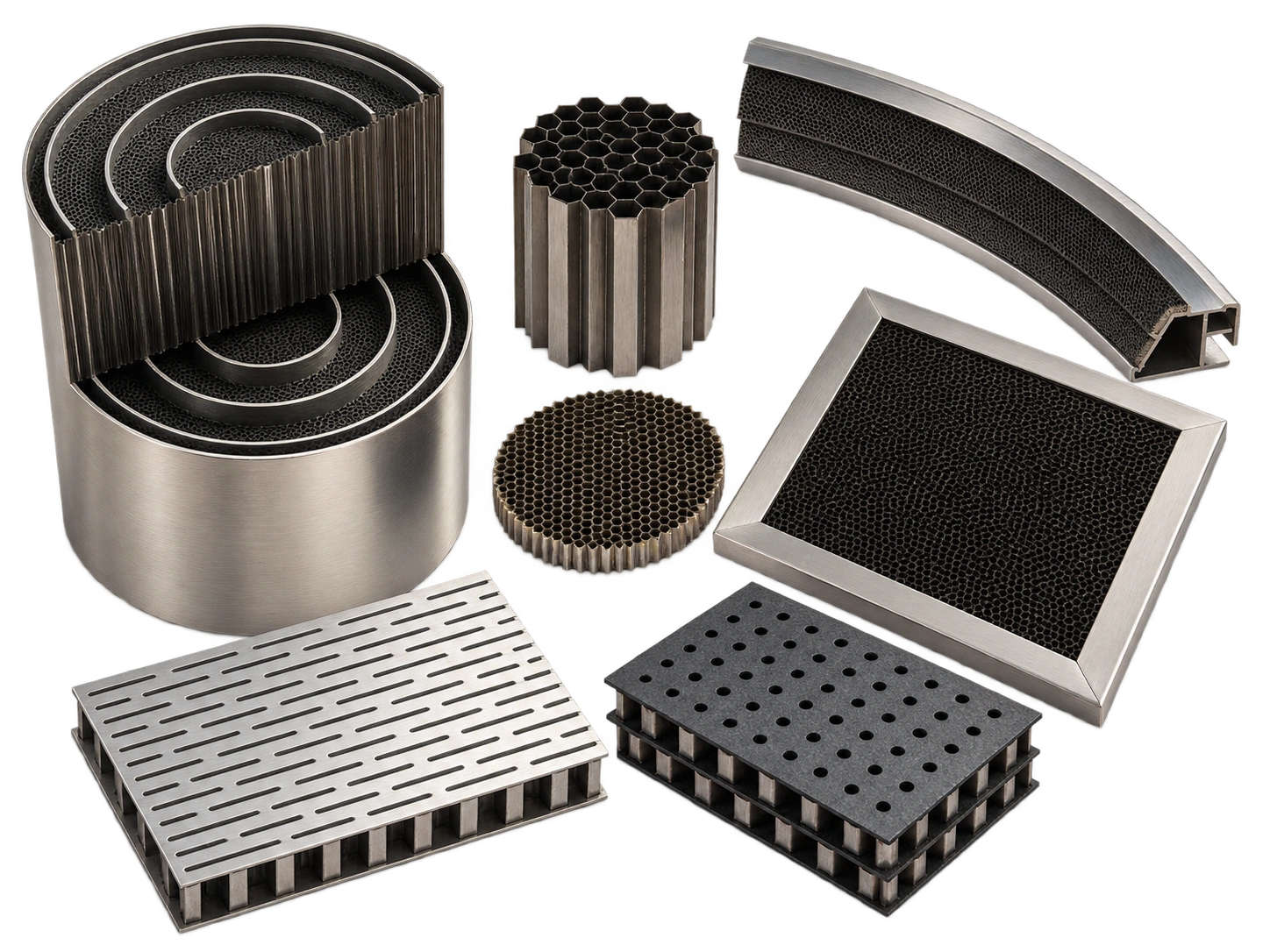

The examples below include cores, honeycomb seals, metallic substrates, electromagnetic shielding vents, flow straighteners and acoustic liners. Share the intended function, material, cell geometry and acceptance requirements to discuss your project.
These metal honeycomb examples illustrate structural, sealing, airflow, acoustic and impact-absorption applications. Use the technical detail pages for background, then share your drawings, cell geometry, material and operating requirements for a manufacturing discussion.
Provide a controlled drawing and revision so Blaze can review geometry, material, joining methods and acceptance criteria before manufacture.
When drawings are unavailable, submit a physical sample and explain the application. Agree on dimensions and material requirements before production.
Identify the required material grade, surface condition and interface dimensions. Specifications are confirmed for the individual component.
Include the inspection plan and documentation needed for your order. Confirm dimensional checks and material records during the quotation review.
These metal honeycomb examples illustrate structural, sealing, airflow, acoustic and impact-absorption applications. Use the technical detail pages for background, then share your drawings, cell geometry, material and operating requirements for a manufacturing discussion.
7 examples
Metal Honeycomb CoreMetal honeycomb core uses a cellular structure to provide a lightweight core for engineered assemblies. Define the material, cell size, foil thickness and core height for the intended structural or thermal application. The final behavior depends on the complete panel or assembly, including any face sheets and bonding method.
Discuss Your Requirements
Honeycomb SealHoneycomb seals are cellular sealing components used in industrial turbine and compressor assemblies to manage leakage at the seal interface. Specify the seal geometry, mating component and operating environment. Material, clearance and attachment requirements need to match the assembly drawing.
Discuss Your Requirements
Metallic SubstrateMetallic substrates provide a support structure for coatings and surface treatments. Define the substrate material, cell geometry and intended coating or process so thermal and mechanical requirements can be reviewed together. The substrate and coating should be specified as a compatible system.
Discuss Your Requirements
Electromagnetic Shielding VentElectromagnetic shielding vents combine ventilation openings with a conductive honeycomb structure to help control electromagnetic interference. Specify the airflow requirement, mounting interface and shielding requirement. Shielding effectiveness depends on the vent geometry, material and electrical continuity with the enclosure.
Discuss Your Requirements

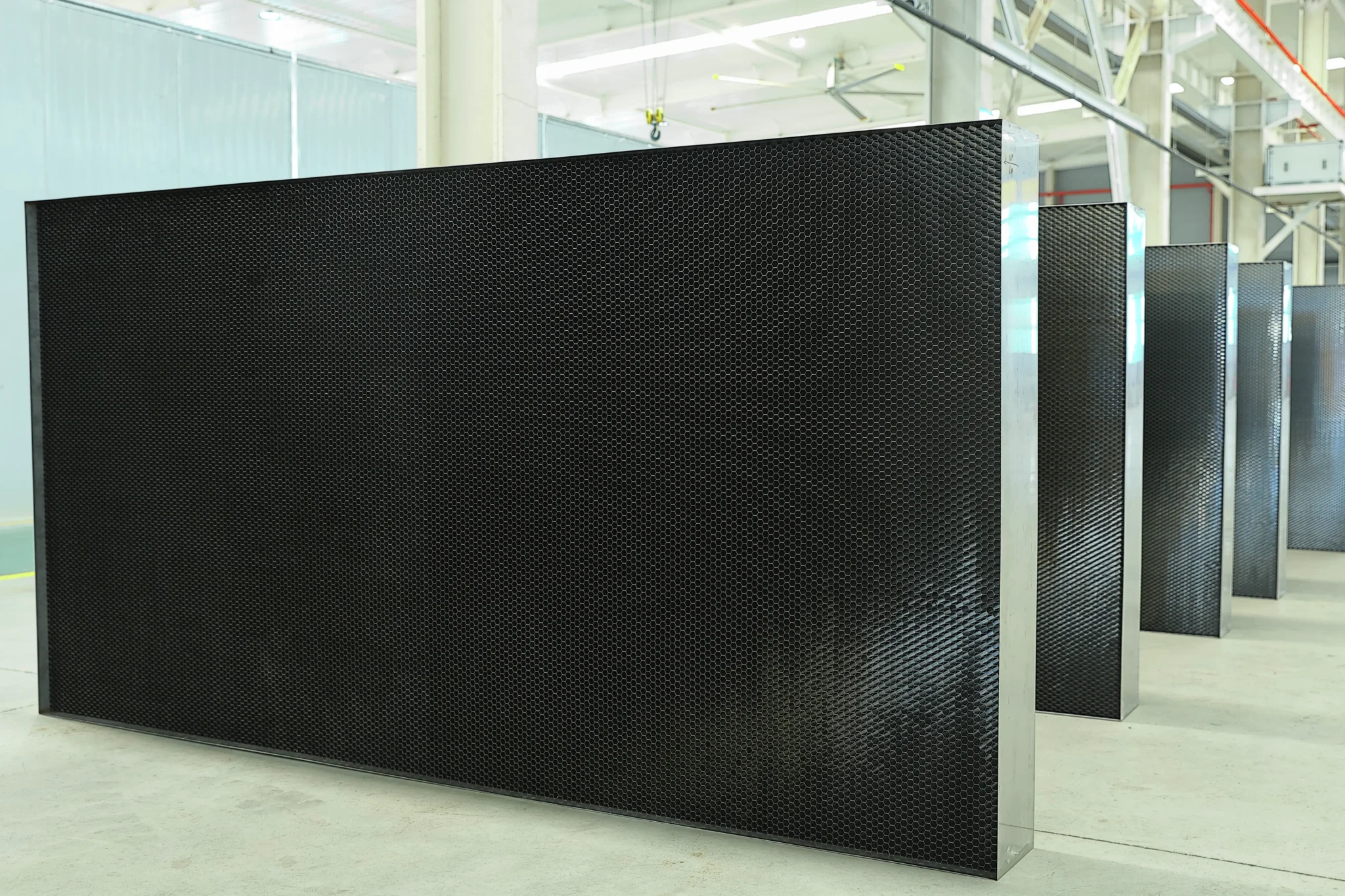

Honeycomb StraightenerHoneycomb flow straighteners guide flow through a cellular structure. Provide the required flow area, cell geometry and mounting arrangement, and confirm the permitted pressure drop and operating conditions for the application.
Discuss Your Requirements
Acoustic LinerAcoustic liners use an engineered lining system to control sound in industrial ducts and related equipment assemblies. Define the noise-control requirement, available depth and airflow environment. Acoustic performance depends on the liner construction and installation, so confirm the design and any test requirements for the intended frequency range.
Discuss Your Requirements
Absorbent Anti-collisionImpact-absorption honeycomb components are intended to absorb energy through controlled deformation. Specify the load direction, available crush distance, interface dimensions and required force or energy response. The component should be evaluated against the application's acceptance criteria.
Discuss Your RequirementsDefine the intended function, material, cell geometry, attachment method and acceptance criteria. Honeycomb structures with similar cell patterns can have different depth and performance requirements. Your application drawing or specification provides the basis for review and quotation.
| Application | Specify | Confirm during review |
|---|---|---|
| Structural core | Cell geometry, core height, material and face-sheet interface | Required stiffness, load direction and bonding method |
| Industrial sealing | Seal dimensions, mating interface and operating environment | Clearance, material and attachment requirements |
| EMI ventilation | Airflow, opening area, enclosure interface and shielding requirement | Pressure drop and electrical continuity |
| Flow straightening | Flow area, cell geometry, flow conditions and mounting | Permitted pressure drop and flow performance |
| Acoustic or impact control | Target frequency range or force/energy response | Assembly construction and application test requirements |
A metal honeycomb inquiry should identify the cell size, foil thickness, core height, overall outline and material grade when these are defined by the design. State the measurement units and the drawing revision. Include the surrounding assembly and attachment method because a bare core, a seal segment and a framed ventilation panel are different manufactured components.
Useful information
A honeycomb core and a honeycomb seal serve different functions. A core is used within a structural or other engineered assembly; a seal manages a sealing interface in industrial equipment such as turbines and compressors. Use the application drawing to define geometry, material and attachment requirements.
An EMI honeycomb vent is designed to provide ventilation while helping control electromagnetic interference. Airflow, pressure drop and shielding requirements must be considered together. Confirm the vent's conductive connection to the enclosure and any shielding test requirements.
A honeycomb flow straightener guides flow through its cellular passages. Specify the flow area, cell geometry and operating conditions when requesting a manufacturing review.
Manufacturing enquiries
Share drawings or sample information, material and specifications, required quantity and application. Blaze Turbine can review the manufacturing scope and prepare a quotation.
