Overview

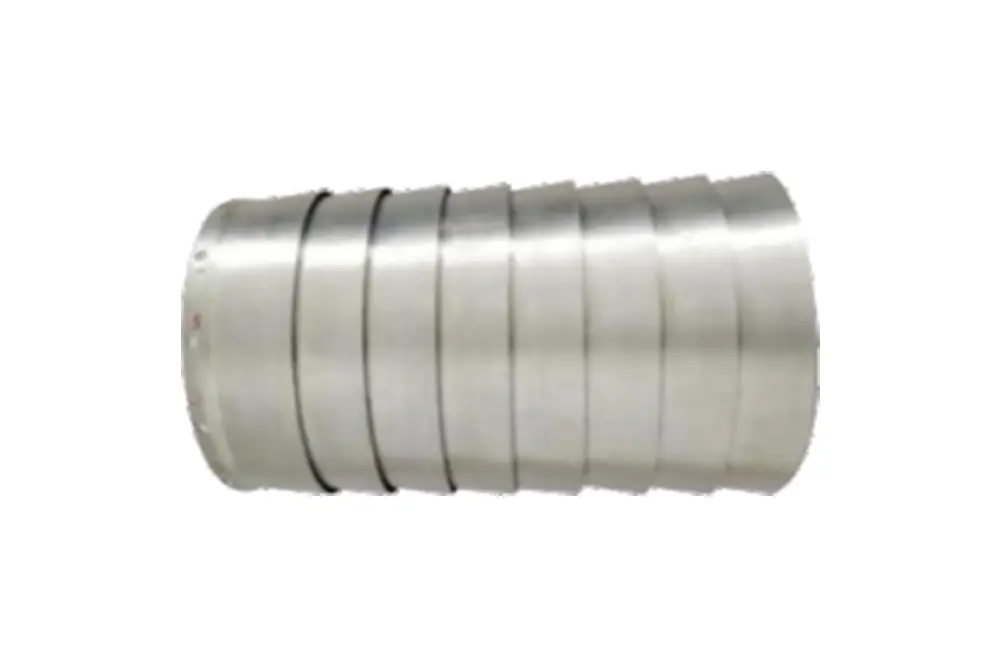

The Cap Middle Stack Assembly forms part of the combustor cap structure. It connects upstream fuel-air mixing elements with the downstream liner. This section ensures stable airflow paths, mechanical strength, and reliable sealing between components.
Materials and Manufacturing
Engineers usually select nickel-based or cobalt-based alloys for this assembly. These alloys provide strong resistance to oxidation and creep at high temperature. Manufacturing involves precision machining, welding, and brazing. Additionally, some designs include protective coatings to extend service life.
Operational Role
The Cap Middle Stack Assembly directs air into the combustor dome. At the same time, it maintains structural support for mixing hardware. Therefore, it plays a critical role in achieving efficient combustion and controlling emissions. Cooling holes and channels are often integrated to handle thermal loads.
